The system
A construction kit that convinces!
The Hirt-Line system can be the basis of a successful producproduction. The basis for the system in turn is its individual components.
In order to give customers the opportunity to go their own way when designing and implementing their systems, Hirt-Line makes all components and their data available here individually. available here individually. Hirt-Line has made all its elements available online for quick and easy ordering.
4 SYSTEM SIZES
mutually compatible
- Type0 | 1/8" | passage 3.2mm | thread M8x0.75
- Type1 | 1/4" | passage 5.8mm | thread M14x1
- Type2 | 1/2" | passage 11.0mm | thread M24x1.25
- Type3 | 3/4" | passage 19,0mm | thread M34x1.25

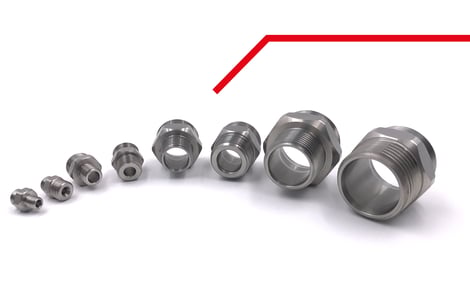

Machine adapter
- Besides the standard pipe threads G 1/8", G 1/4", G 3/8", G 1/2", G3/4", G1" as well as metric M5x0.8 over M14x1.0 up to M20x1.5, we also offer conical threads and ball head adapters with the dimensions Ø10mm Ø12mm Ø14mm Ø15mm, plus various special adapters. You will receive your special connection adapter on request!

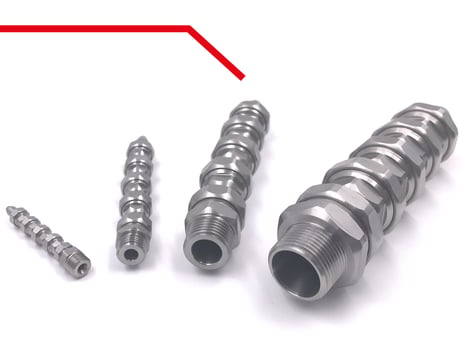

Basic elements
- 3.2mm, 5.8mm, 11.0mm and 19.0mm inner diameters measure the basic elements of the Hirt-Line system. The large number of different standard lengths from 9.3mm to 100mm and up to 1000mm make it possible to set up and fix the cooling jet exactly where it is needed. And thus ensure effective and simple adjustment. Other lengths on special production possible.

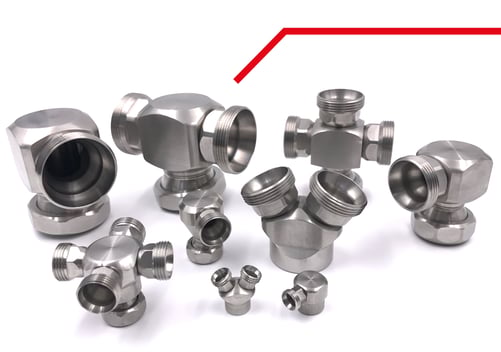

Angle elements
-
The Hirt-Line system offers many different angle elements in every system size, whether Type0, Type1, Type2, or Type3 we have the right one, e.g. 90° angle pieces, multiple connections, T- and Y-pieces. Due to the large selection, we ensure the greatest possible flexibility of the system. Special fittings on request!

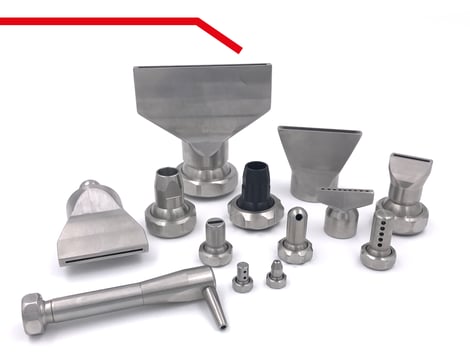

Nozzles
- The nozzles made of a material 1.4305 (V2A) are insensitive to heat and available from Ø1.0 mm, over Ø10.0 mm up to Ø19.0 mm passage. Our numerous flat nozzles with different slot widths leave nothing to be desired, whether for flushing or cooling as well as flat and cylindrical grinding. In addition, there are some special nozzles with either or mini-slots, all of which are optimised for perfect cooling.

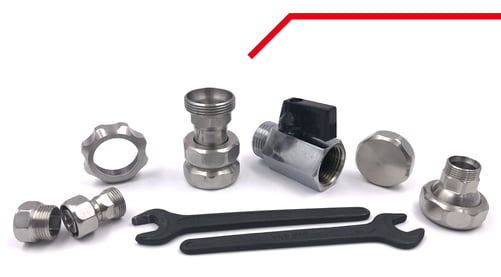

Accessories
-
The Hirt-Line accessories consist of suitable products such as quick-release couplings, knurled nuts or caps, plus reductions to combine the individual systems with each other. systems with each other. We also offer suitable external items such as ball valves and open-end spanners. With this assortment, you can ensure an optimal and stable coolant supply in the future, especially for individual coolant supply, especially for individual applications.
MADE IN SWITZERLAND is the quality promise from Hirt-Line®
We are committed to this through our own flexible production and high quality standards.
Whether series production of standard products or individual production of special solutions - we are happy to be there for you!
